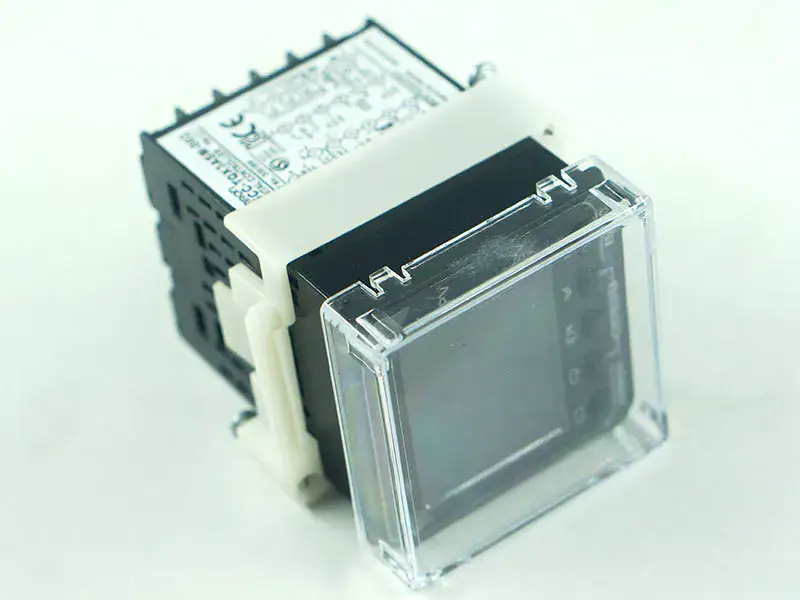

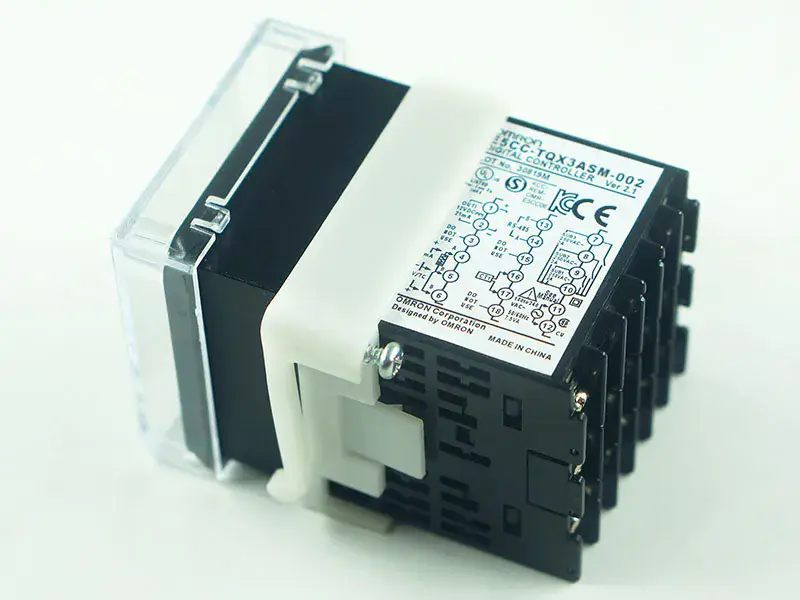

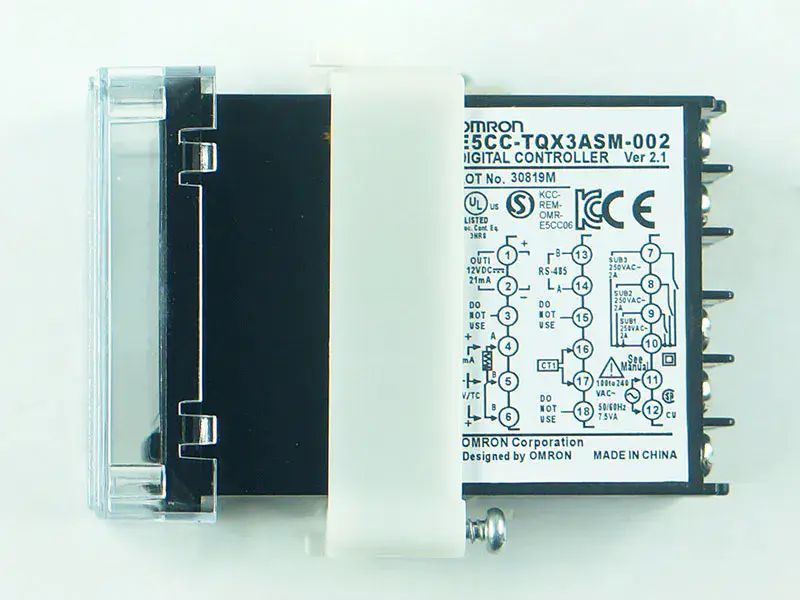

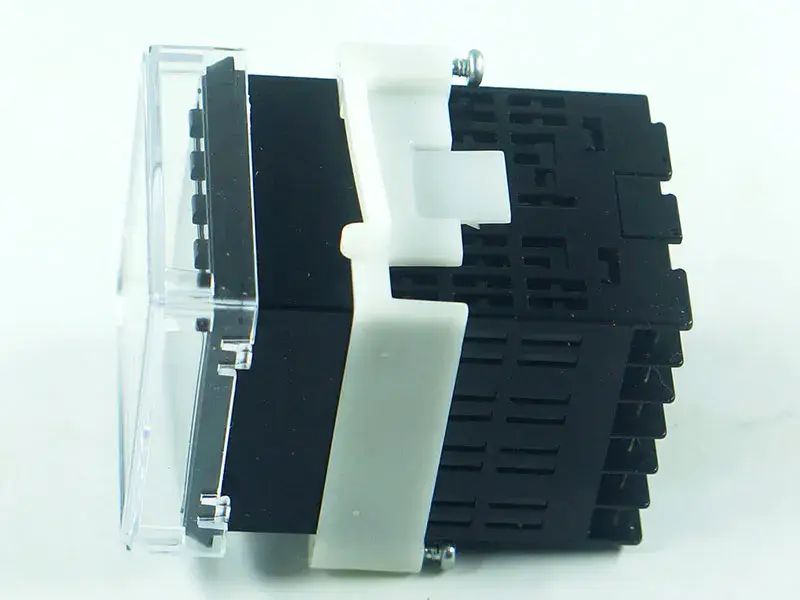

Controlador de temperatura Omron E5CC-TQX3ASM-002

Refurbished Omron E5CC-TQX3ASM-002 temperature controller

Imágenes del producto

Especificaciones

Brand Name： Omron
Model Number： E5CC-TQX3ASM-002
Technical support： Available
Fixed/Programmable Programmable
Power supply voltage：100 to 240 VAC (50/60 Hz)
Allowable voltage variable range： 85 to 110% of the power supply voltage
Power consumption： 7.5 VA max. (at 100 to 240 VAC)
Number of input points：1 point
Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII
Platinum resistance：thermometer: Pt100, JPt100
Infrared Thermosensor: 10 to 70 ℃, 60 to 120 ℃, 115 to 165 ℃, 140 to 260 ℃
Analog input
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V
Input impedance Current input: 150 Ω max., voltage input: 1 MΩ min. (Applicable when connecting 1:1 to ES2-HB-N/THB-N.)
Condition： Refurbished
