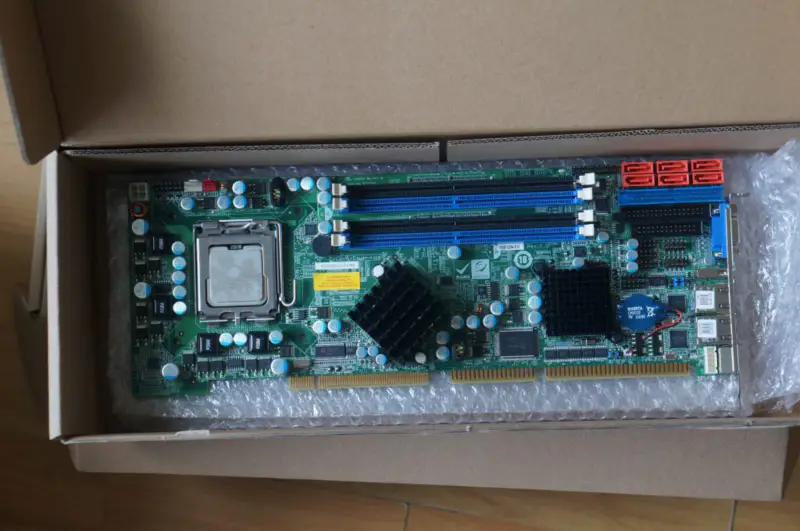

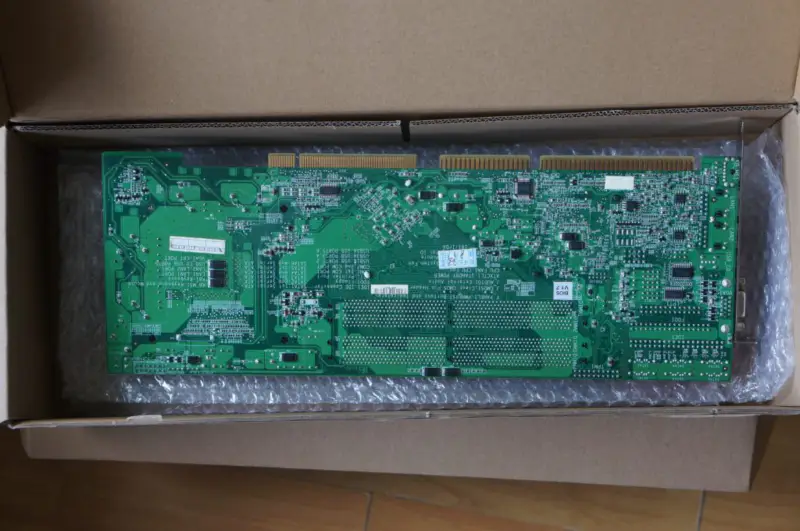

WSB-Q354-R10 Rev:1.0 industrial motherboard Q35 chipset
| Factor de forma | PICMG |
|---|---|
| Ethernet Chipset | Broadcom BCM5787 |
| System Chipset | Intel ICH9R |
| Video Chipset | Intel Q35 |
| Audio | 10-pin on-board header supports 7.1 channel HD Audio by IEI AC-KIT883HD |
| BIOS | AMI BIOS Label with 8Mb SPI EEPROM |
| Chipset | Intel® Q35 + ICH9R |
| CPU | LGA775 45nm Intel® Core™2 Quad (Yorkfield), Core™2 Duo (Wolfdale), Core™2 Duo, Celeron at FSB800/1066/1333MHz processors |
| E/S digitales | 8-bit Digital I/O, 4-bit input / 4-bit output |
| Dimensiones | 338 mm x 126 mm |
| Display Interface | Analog VGA output |
| Ethernet | Dual Broadcom BCM5787M GbE with ASF 2.0 |
| Gross Weight | GW: 1.1kg |
| I/O | 2 x RS-232 7 x USB2.0 (1 on bracket, 6 on board by pin header) 6 x SATA II support RAID 0, 1, 10, 5 1 x IDE 1 x FDD 1 x LPT 1 x Keyboard and mouse (PS/2) 1 x 5-pin on-board header for KB |
| IrDA | 1 x Infrared |
| Operating Humidity | Operation: 5% ~95% non-condensing |
| Operating Temperature | Operation: 0°C ~ 60°C (32°F ~ 140°F) |
| Power Consumption | 3.3 V @ 0.03A, 5 V @ 8.62 A, 5 Vsb @ 0.11 A, 12 V @ 0.1A,@(Intel Core™2 Duo E8400, DDR2 800MHz 2GB x 4) 3D Mark 2001SE |
| Fuente de alimentación | ATX |
| System Memory | 4 x 240-pin DIMM socket dual channel DDRII at 800/667MHz up to 8GB |
| TPM1.2 | 1 x 20-pin on-board header for TPM (Trusted Platrom Module) |
| Watchdog Timer | Software Programmable supports 1~255sec. system reset |
